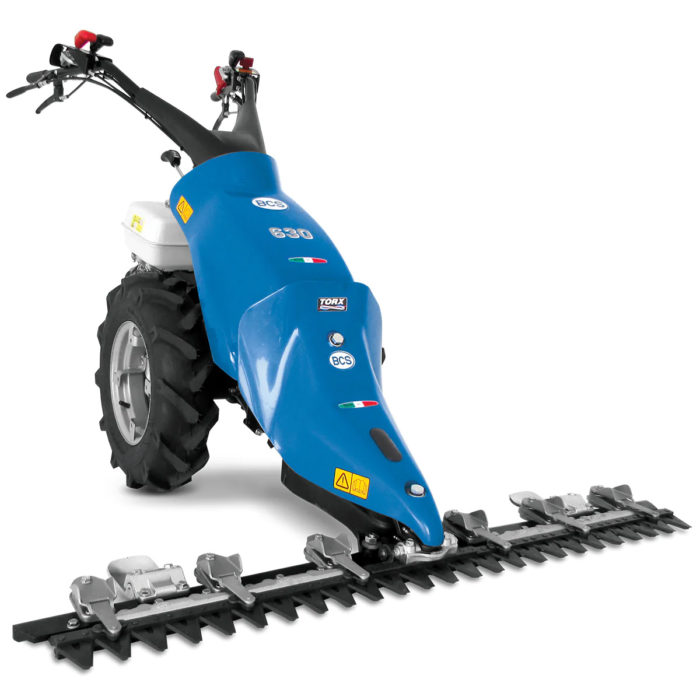

Featuring steering brakes, a locking differential, and large wheels, the BCS 630 is the biggest machine in the Crusader range and is powered by the reliable Honda GX270 engine.
There is also a banks version of the Honda engine, which allows the machine to be used on slopes up to 20˚. The bigger wheels, faster working speeds, and range of wider cutter bars mean that the 630 is ideally suited to larger, more open areas such as meadows and fields.
The BCS 630 can also be fitted with a wide range of other implements including a chipper-shredder, flail mower, sweepers, snow blowers and more for maximum versatility.
Power Unit
Engine |
Honda GX270 Petrol (8.4hp/6.3kW) |
Honda GX270 Petrol Banks (8.4hp/6.3kW) |
Gears |
3 forward & 3 reverse |
Speeds |
Forward: |
I: 1.26km/hr |
II: 2.92km/hr |
III: 4.30km/hr |
Reverse: |
I: 1.33km/hr |
II: 3.08km/hr |
III: 4.53km/hr |
Brakes |
Steering Brakes |
Differential |
Locking differential |
Wheels |
5.00 x 10 agricultural |
Weight (power unit only) |
103kg |
Dimensions L W H (power unit only) |
125cm x 57cm (5.00 x 10 wheels)/74cm (handlebars) x 120cm |
Warranty |
Domestic: |
3 years |
Commercial: |
2 years |
Scythe Cutter Bar
Cutting Width |
100cm (40″) |
115cm (45″) |
135cm (53″) |
155cm (61″) |
No of Blades |
19 |
23 |
27 |
31 |
Drive Movement |
Long oil bath |
Short oil bath |
Long oil bath |
Long oil bath |
Long oil bath |
Weight |
42kg |
42kg |
46kg |
48kg |
50kg |
With a comprehensive distribution network covering the majority of the South of the UK and the West and East Midlands (including Devon, Cornwall, Dorset, Somerset, Bristol, Gloucester, South Wales, etc,) using our own delivery vehicles, we are able to prepare, test and hand over product within selected postcode areas.
Please note that due to the weights of these products they may incur a delivery charge over and above those displayed at the checkout.
Please contact us before placing your order.
